Description

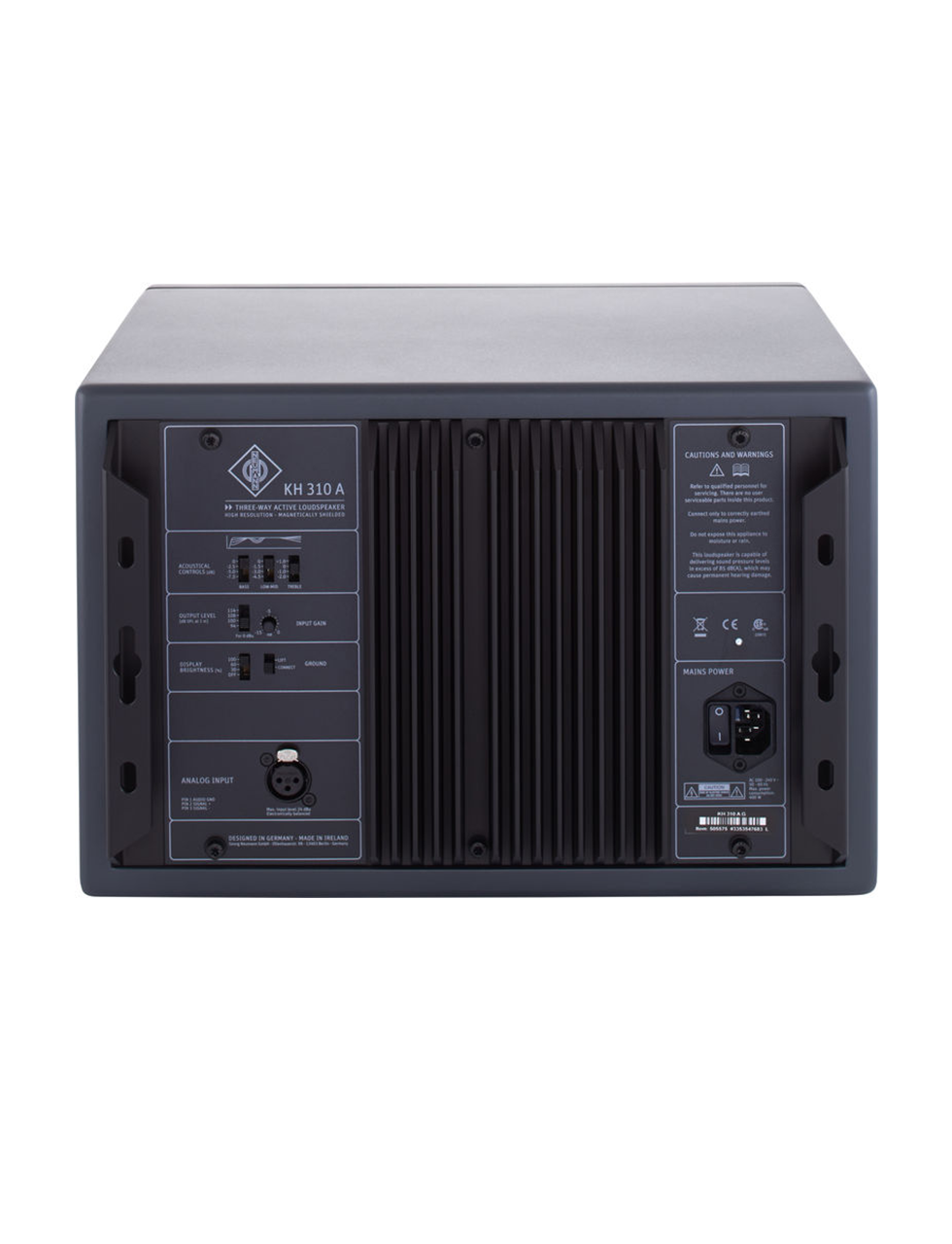

Active Studio Monitor L/R
-
3 Way System
-
Maximum sound neutrality and transient response
-
Uniform directivity
-
Precise bass reproduction down to 34 Hz
-
LF input with extremely low distortion electronically-balanced input stage
-
Magnetically shielded
-
Variable adaptation within three frequency ranges
-
Peak power: 210 W (Woofer), 90 W (Midrange), 90 W (Tweeter)
-
Continuous power: 150 W (Woofer), 70 W (Midrange), 70 W (Tweeter)
-
Free-field frequency response: 34 Hz – 21 kHz, +/- 3 dB
-
Total harmonic distortion (THD)
-
Sound pressure level: 120.2 dB SPL at 1 meter in half space at 3% THD
-
Membrane dimensions: Woofer 8 1/4″, Midrange: 3″, Tweeter: 1″
-
Controller-Technology: Analog, active
-
Crossover: Crossover frequency 650 Hz/2 kHz
-
24 dB/Oct
-
Equalization: Bass: 0..-7.5 dB, Midrange: 0..-4.5 dB, Treble: 1..-2 dB, each adjustable in 4 steps
-
Audio input (analog): XLR> 10K ohms electronically balanced
-
Dimensions: 253 x 383 x 292 mm
-
Weight: 13.0 kg
-
Mounting option: 2 x M8 side
