Description
Lighting Controller Console
-
DMX control with four universes
-

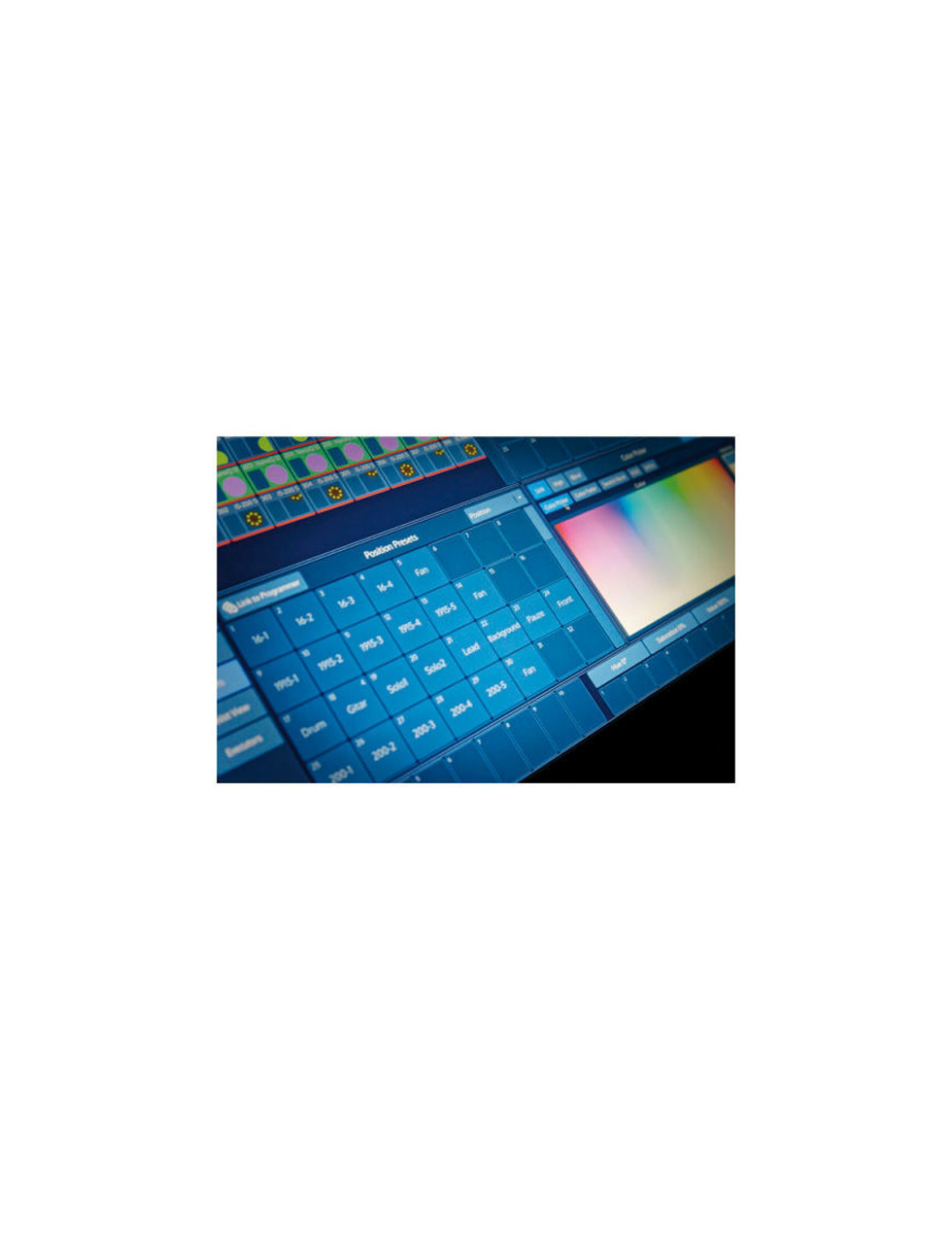

With a 22″ resistive touch screen (resolution: 1920 x 1080 full HD)
-
Numeric keypad and 4 encoders
-
10 Playback faders with Go, Pause / Reverse and Flash buttons
-
10 Executor / Flash buttons
-
Colour picker
-
Swatchbook by Lee, Rosco and Apollo Filters
-
Gobo picker
-
Freely programmable groups and presets
-
Customizable display layout
-
Effects engine
-
Fan functions on all attributes
-
Integrated device library and device editor
-
4x DMX 5-pin inputs / outputs (RDM-ready)
-
Ethernet / Art-Net
-
HDMI monitor output
-
MIDI Input / Thru / Output 5-pin DIN
-
Audio / SMPTE / LTC 3-pin XLR input
-
IEC power supply input
-
2x 3-pin XLR for a gooseneck lamp (dimmable)
-
2x USB
-
Dimensions (L x W x H): 647 x 575 x 279 mm
-
Weight: 18 kg
Software:
-
4 universes for a total of 2048 DMX channels
-
300 devices
-
100 groups
-
10,000 memories
-
400 memory stacks
-
9x 100 presets (position, colour, beam, effects, etc.)
-
Output visualizer
-
Tracking and non-tracking function
