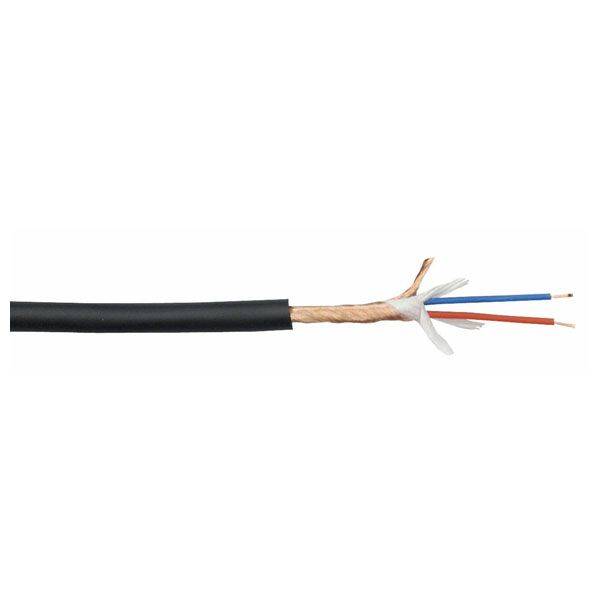

DAP MC-216 Microphone Cables

Description

Black mic/line cable, 100 m on spool
Conductor drains Ø mm OFC 28 x 0,10
Conductor insulation PE red+blue
Conductor insulation Ø in mm 1,5
Filler material paper + cotton yarn
1st shield OFC twisted 83 x 0,12
2nd shield –
Outer isolation PVC black, blue, red, yellow, green
Outer isolation Ø in mm 6

Conductor resistance 80 Ohm/Km
Shield resistance 25 Ohm/Km
Capacity Inner conductor 45 pF/m
Cap. Inner conduct. Shield/Inner conduct. 112 pF/m
Working temperature -20~60 °C (min. / max.)
Working Voltage overflash 30V
Nom Impedance 110 Ohm
